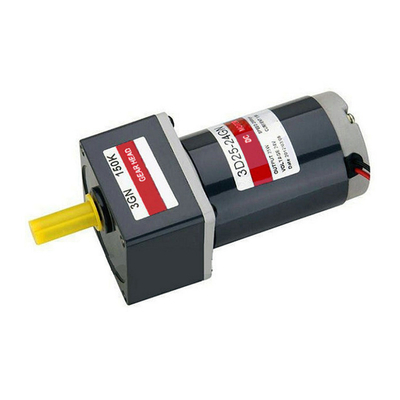

Name: drip-proof motor 250W 104mm permanent magnet DC 24V micro electric brush motor DC geared motor
Brand: drip-proof motor 250W 104mm permanent magnet DC 24V micro electric brush motor DC geared motor
SKU: GS6D250
Price: 25.00 USD
Availability: InStock
Rating: 4.9 (196 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Warranty: 1YEAR

Model Number: GS6D250

Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance

Type: GEAR MOTOR

Torque: 796mN.m

Construction: Square gear head

Commutation: Brush

Protect Feature: Drip-proof

Speed(RPM): 2800RPM

Continuous Current(A): 16A Max

Efficiency: IE 2

Ratio: 3-200

Size: 104*104mm

Zertifizierung: ce

Grundinformation

Zertifizierung: ce

Model Number: GS6D250

Zahlung und Versand AGB

Packaging Details: Plastic bag and carton packing

Supply Ability: 30000 Piece/Pieces per Month

Produkt-Beschreibung

PRODUCT DESCRIPTION

We have both DC gear motor and Brushless dc gear motor, including 5 kinds of 300 products. The watt is from 6W to 300W, voltage is from 12V DC to 220V DC. The advantages of our motors are steady work, big starting and rated torque, low noise, high efficiency and long life.

Allowance Torque

Motor Model	Voltage	Output power	No-load Parameters		Load Parameters			Brush Life	Motor Weight
	Voltage	Output power	No-load Speed	No-load Current	Load Speed	Load Torque	Load Current	Brush Life	Motor Weight
	V	W	r/min	A	r/min	mN.m	A	(Hours)	kg
GS6D250-24	24	250	3400	3.0 MAX	3000	796	16.0	2000	3.2
GS6D250-90	90	250	3300	1.0 MAX	3000	796	4.0	2000	3.2
GS6D250-220	220	250	3300	0.8 MAX	3000	796	2.0	2000	3.2

Motor Characteristics

Type	Gear Ratio		3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
GS6D250-24GU	Speed	rpm	1000	833	600	500	400	333	240	200	167	120	100	83	60	50	40	33	30	25	20	17	15
GS6D250-24GU	6GU£KB	N.m	1.93	2.32	3.22	3.87	4.83	5.8	7.25	8.7	10.4	13.1	15.7	18.8	26.1	31.1	39.2	40

Dimensional Drawing

Note:
If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable solution and price soon.
